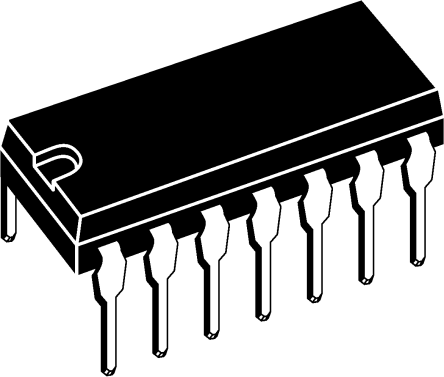

Analog Devices AD8522ANZ, 2-Channel 12 bit Serial DAC, 62.5ksps, 14-Pin PDIP [AD8522ANZ]; 158-0142
0₫
Mã kho: 1580142
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Single |
| Conversion Rate | 62.5ksps |
| Typical Single Supply Voltage | 5 V |
| Voltage Reference | Internal |
| Architecture | R-2R, Resistor String |
| Pin Count | 14 |
| Maximum Settling Time | 16µs |
| Output Polarity | Unipolar |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 19.05 x 6.35 x 3.3mm |
| Height | 3.3mm |
| Width | 6.35mm |
| Integral Nonlinearity Error | ±1.5LSB |
| Length | 19.05mm |
| Minimum Operating Temperature | -40 °C |
