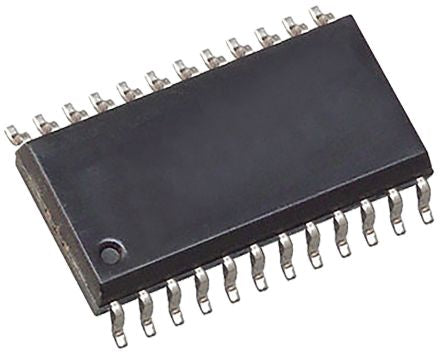

Analog Devices AD7847ARZ, 2-Channel 12 bit Parallel DAC, 250ksps, 24-Pin SOIC [AD7847ARZ]; 160-1718
0₫
Mã kho: 1601718
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 2 |
Digital Interface Type | Parallel |
Mounting Type | Surface Mount |
Package Type | SOIC |
Power Supply Type | Dual |
Conversion Rate | 250ksps |
Voltage Reference | Internal |
Architecture | Segmented |
Pin Count | 24 |
Maximum Settling Time | 5µs |
Output Polarity | Bipolar, Unipolar |
Maximum Operating Temperature | +85 °C |
Height | 2.186mm |
Minimum Operating Temperature | -40 °C |
Integral Nonlinearity Error | ±1LSB |
Width | 7.6mm |
Length | 15.45mm |
Typical Dual Supply Voltage | ±15V |
Dimensions | 15.45 x 7.6 x 2.186mm |
