![Analog Devices AD7846KPZ 9127905](http://nguyenxuong.com/cdn/shop/products/R5338653-06_1b6966b1-9b34-491b-bca5-ab9fb1730bf7_340x288.jpg?v=1594419465)

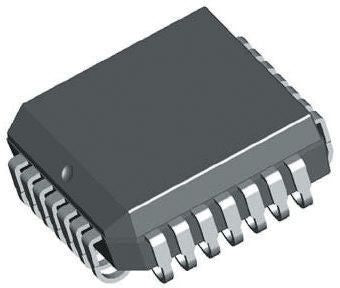

Analog Devices AD7846KPZ, 16 bit Parallel DAC, 143ksps, 28-Pin PLCC [AD7846KPZ]; 912-7905
0₫
Mã kho: 9127905
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 16 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Parallel |
Mounting Type | Surface Mount |
Package Type | PLCC |
Power Supply Type | Dual |
Conversion Rate | 143ksps |
Voltage Reference | External |
Architecture | Resistor String |
Pin Count | 28 |
Maximum Settling Time | 9µs |
Output Polarity | Bipolar, Unipolar |
Full Scale Error | ±16LSB |
Height | 3.94mm |
Maximum Operating Temperature | +70 °C |
Length | 11.58mm |
Dimensions | 11.58 x 11.58 x 3.94mm |
Minimum Operating Temperature | 0 °C |
Typical Dual Supply Voltage | ±15V |
Width | 11.58mm |
Integral Nonlinearity Error | ±8LSB |
