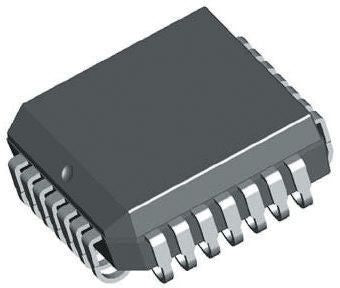

Analog Devices AD7846JPZ, 16 bit Parallel DAC, 143ksps, 28-Pin PLCC [AD7846JPZ]; 709-6821
0₫
Mã kho: 7096821
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | PLCC |
| Power Supply Type | Dual |
| Conversion Rate | 143ksps |
| Voltage Reference | External |
| Architecture | Resistor String |
| Pin Count | 28 |
| Maximum Settling Time | 9µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±16LSB |
| Integral Nonlinearity Error | ±16LSB |
| Length | 11.58mm |
| Dimensions | 11.58 x 11.58 x 3.94mm |
| Typical Dual Supply Voltage | ±15V |
| Width | 11.58mm |
| Height | 3.94mm |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
