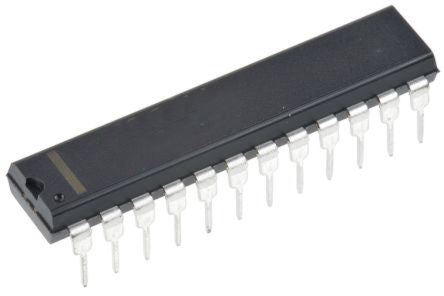

Analog Devices AD7840JNZ, 14 bit Parallel DAC, 24-Pin DIP [AD7840JNZ]; 183-2083
0₫
Mã kho: 1832083
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 14 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | DIP |
| Power Supply Type | Dual |
| Voltage Reference | External |
| Pin Count | 24 |
| Maximum Settling Time | 4µs |
| Output Polarity | Bipolar |
| Full Scale Error | ±10LSB |
| Integral Nonlinearity Error | ±2LSB |
| Length | 31.19mm |
| Width | 6.61mm |
| Typical Dual Supply Voltage | ±5V |
| Dimensions | 31.19 x 6.61 x 3.3mm |
| Minimum Operating Temperature | -40 °C |
| Height | 3.3mm |
| Maximum Operating Temperature | +70 °C |
