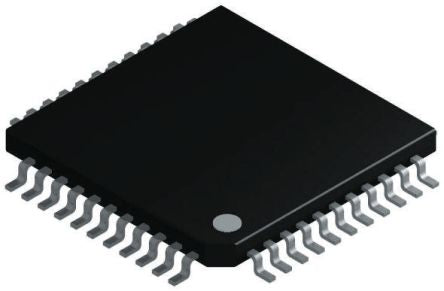

Analog Devices AD7835ASZ, 4-Channel 14 bit Parallel DAC, 100ksps, 44-Pin MQFP [AD7835ASZ]; 708-9987
0₫
Mã kho: 7089987
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 14 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | MQFP |
| Power Supply Type | Dual |
| Conversion Rate | 100ksps |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 44 |
| Maximum Settling Time | 10µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±5mV |
| Integral Nonlinearity Error | ±2LSB |
| Width | 10mm |
| Minimum Operating Temperature | -40 °C |
| Height | 2mm |
| Maximum Operating Temperature | +85 °C |
| Length | 10mm |
| Typical Dual Supply Voltage | ±15V |
| Dimensions | 10 x 10 x 2mm |
