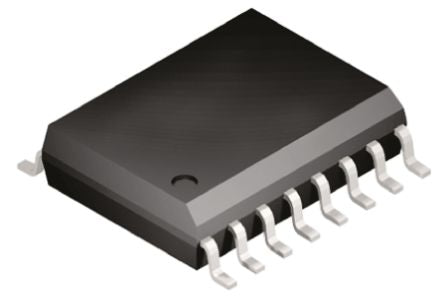

Analog Devices AD7804BRZ, 4-Channel 10 bit Serial DAC, 667ksps, 16-Pin SOIC W [AD7804BRZ]; 177-7135
0₫
Mã kho: 1777135
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 10 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Surface Mount |
| Package Type | SOIC W |
| Power Supply Type | Single |
| Conversion Rate | 667ksps |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Voltage Reference | External, Internal |
| Pin Count | 16 |
| Maximum Settling Time | 4µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±3%FSR |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 7.6mm |
| Height | 2.35mm |
| Integral Nonlinearity Error | ±3LSB |
| Length | 10.5mm |
| Dimensions | 10.5 x 7.6 x 2.35mm |
