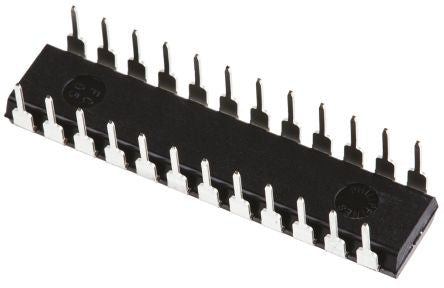

Analog Devices AD767JNZ, 12 bit Parallel DAC, 24-Pin PDIP [AD767JNZ]; 111-1101
0₫
Mã kho: 1111101
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Parallel |
Mounting Type | Through Hole |
Package Type | PDIP |
Power Supply Type | Dual |
Voltage Reference | External, Internal |
Architecture | Current Steering |
Pin Count | 24 |
Maximum Settling Time | 4µs |
Output Polarity | Bipolar, Unipolar |
Full Scale Error | ±0.2%FSR |
Length | 31.75mm |
Dimensions | 31.75 x 6.35 x 3.3mm |
Integral Nonlinearity Error | ±1LSB |
Width | 6.35mm |
Maximum Operating Temperature | +70 °C |
Height | 3.3mm |
Typical Dual Supply Voltage | ±12 V, ±15 V |
Minimum Operating Temperature | 0 °C |
