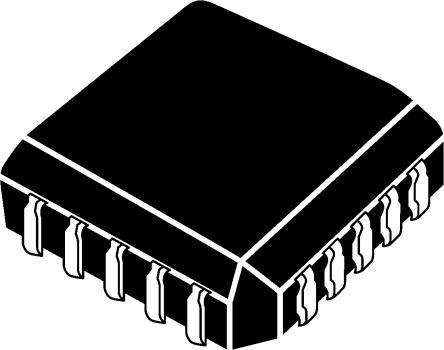

Analog Devices AD7628KPZ, 2-Channel 8 bit Parallel DAC, 2.9Msps, 20-Pin PLCC [AD7628KPZ]; 758-9812
0₫
Mã kho: 7589812
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | PLCC |
| Power Supply Type | Single |
| Conversion Rate | 2.9Msps |
| Typical Single Supply Voltage | 12 → 15 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 20 |
| Maximum Settling Time | 0.4µs |
| Output Polarity | Bipolar, Unipolar |
| Length | 9.04mm |
| Maximum Operating Temperature | +85 °C |
| Height | 4.57mm |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±0.5LSB |
| Width | 9.04mm |
| Dimensions | 9.04 x 9.04 x 4.57mm |
