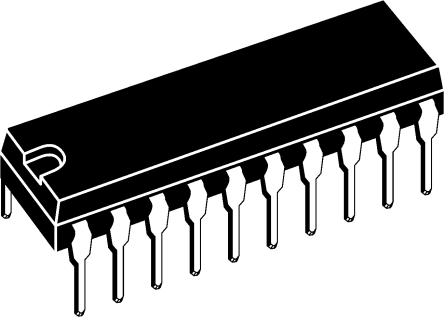

Analog Devices AD7628KNZ, 2-Channel 8 bit Parallel DAC, 2.9Msps, 20-Pin PDIP [AD7628KNZ]; 523-6642
0₫
Mã kho: 5236642
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 8 bit |
Number of DAC Channels | 2 |
Digital Interface Type | Parallel |
Mounting Type | Through Hole |
Package Type | PDIP |
Power Supply Type | Single |
Conversion Rate | 2.9Msps |
Typical Single Supply Voltage | 12 V, 15 V |
Voltage Reference | External |
Architecture | R-2R, Resistor String |
Pin Count | 20 |
Maximum Settling Time | 0.4µs |
Full Scale Error | ±3LSB |
Width | 6.35mm |
Dimensions | 26.16 x 6.35 x 3.3mm |
Length | 26.16mm |
Maximum Operating Temperature | +85 °C |
Height | 3.3mm |
Integral Nonlinearity Error | ±0.5LSB |
Minimum Operating Temperature | -40 °C |
