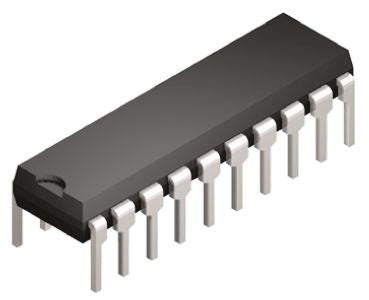

Analog Devices AD7548KNZ, 12 bit DAC, 20-Pin PDIP [AD7548KNZ]; 759-2427
0₫
Mã kho: 7592427
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 1 |
Mounting Type | Through Hole |
Package Type | PDIP |
Power Supply Type | Single |
Typical Single Supply Voltage | 12 → 15 V |
Voltage Reference | External |
Architecture | R-2R, Resistor String |
Pin Count | 20 |
Maximum Settling Time | 1µs |
Output Polarity | Bipolar, Unipolar |
Full Scale Error | ±3LSB |
Dimensions | 26.9 x 7.11 x 5.33mm |
Length | 26.9mm |
Maximum Operating Temperature | +70 °C |
Height | 5.33mm |
Minimum Operating Temperature | 0 °C |
Width | 7.11mm |
Integral Nonlinearity Error | ±0.5LSB |
