Data Converters > General Purpose DACs

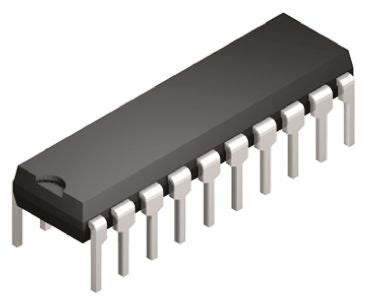

Analog Devices AD7548KNZ, 12 bit DAC, 20-Pin PDIP [AD7548KNZ]; 159-7737

0₫
(Giá chưa VAT).
Mã kho: 1597737

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Resolution 12 bit
Number of DAC Channels 1
Mounting Type Through Hole
Package Type PDIP
Power Supply Type Single
Typical Single Supply Voltage 12 → 15 V
Voltage Reference External
Architecture R-2R, Resistor String
Pin Count 20
Maximum Settling Time 1µs
Output Polarity Bipolar, Unipolar
Full Scale Error ±3LSB
Height 5.33mm
Maximum Operating Temperature +70 °C
Length 26.9mm
Dimensions 26.9 x 7.11 x 5.33mm
Width 7.11mm
Minimum Operating Temperature 0 °C
Integral Nonlinearity Error ±0.5LSB
