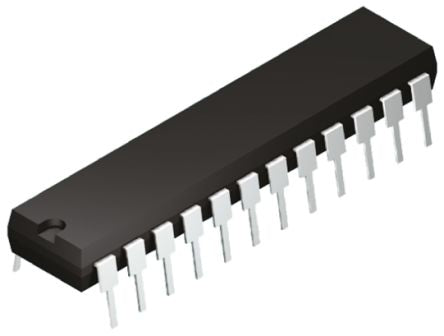

![Analog Devices AD7547JNZ 1582574](http://nguyenxuong.com/cdn/shop/products/R6248034-06_b0f3b590-d1ed-4ed6-a035-cbaf93546c2e_444x336.jpg?v=1594286584)
Analog Devices AD7547JNZ, 2-Channel 12 bit Parallel DAC, 667ksps, 24-Pin PDIP [AD7547JNZ]; 158-2574
0₫
Mã kho: 1582574
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 2 |
Digital Interface Type | Parallel |
Mounting Type | Through Hole |
Package Type | PDIP |
Power Supply Type | Single |
Conversion Rate | 667ksps |
Typical Single Supply Voltage | 12 V, 15 V |
Voltage Reference | External |
Architecture | R-2R, Resistor String |
Pin Count | 24 |
Maximum Settling Time | 1.5µs |
Full Scale Error | ±6LSB |
Length | 31.19mm |
Dimensions | 31.19 x 6.61 x 3.3mm |
Maximum Operating Temperature | +85 °C |
Height | 3.3mm |
Width | 6.61mm |
Integral Nonlinearity Error | ±1LSB |
Minimum Operating Temperature | -40 °C |
