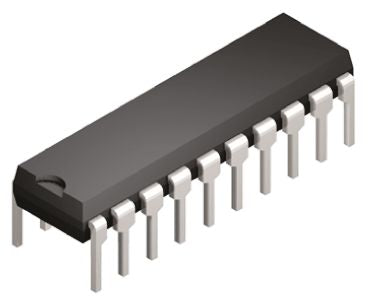

![Analog Devices AD7545JNZ 1597638](http://nguyenxuong.com/cdn/shop/products/PDIP-20_ac08557b-a964-4e39-9e46-40ef15c682f9_369x300.jpg?v=1594096889)
Analog Devices AD7545JNZ, 12 bit DAC, 20-Pin PDIP [AD7545JNZ]; 159-7638
0₫
Mã kho: 1597638
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 1 |
Mounting Type | Through Hole |
Package Type | PDIP |
Power Supply Type | Single |
Typical Single Supply Voltage | 5 → 15 V |
Voltage Reference | External |
Architecture | R-2R, Resistor String |
Pin Count | 20 |
Maximum Settling Time | 2µs |
Output Polarity | Bipolar, Unipolar |
Height | 3.683mm |
Maximum Operating Temperature | +70 °C |
Dimensions | 27.18 x 6.477 x 3.683mm |
Length | 27.18mm |
Integral Nonlinearity Error | ±2LSB |
Width | 6.477mm |
Minimum Operating Temperature | 0 °C |
