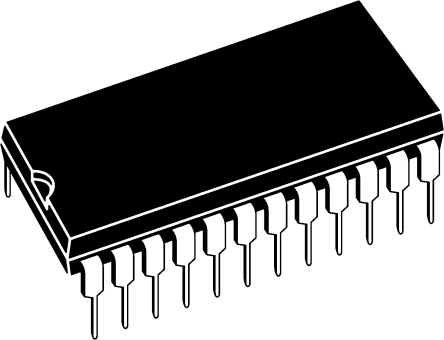

![Analog Devices AD7538KNZ 1597810](http://nguyenxuong.com/cdn/shop/products/L483643-01_2bc67f89-cb82-4563-984e-d587fb28dd68_444x340.gif?v=1594073337)
Analog Devices AD7538KNZ, 14 bit Parallel DAC, 667ksps, 24-Pin PDIP [AD7538KNZ]; 159-7810
0₫
Mã kho: 1597810
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 14 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Parallel |
Mounting Type | Through Hole |
Package Type | PDIP |
Power Supply Type | Single |
Conversion Rate | 667ksps |
Typical Single Supply Voltage | 12 V, 15 V |
Voltage Reference | External |
Architecture | R-2R, Resistor String |
Pin Count | 24 |
Maximum Settling Time | 1.5µs |
Full Scale Error | ±5LSB |
Minimum Operating Temperature | 0 °C |
Integral Nonlinearity Error | ±1LSB |
Width | 6.35mm |
Length | 31.75mm |
Maximum Operating Temperature | +70 °C |
Height | 3.3mm |
Dimensions | 31.75 x 6.35 x 3.3mm |
