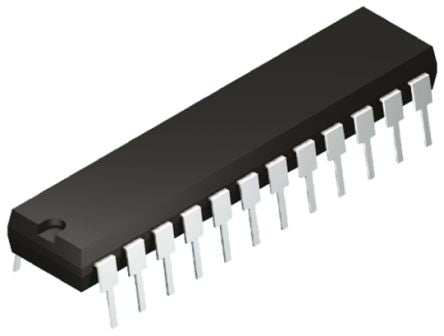

Analog Devices AD7537KNZ, 2-Channel 12 bit Parallel DAC, 667ksps, 24-Pin PDIP [AD7537KNZ]; 709-6474
0₫
Mã kho: 7096474
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Parallel |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Single |
| Conversion Rate | 667ksps |
| Typical Single Supply Voltage | 12 V, 15 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 24 |
| Maximum Settling Time | 1.5µs |
| Full Scale Error | ±3LSB |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±0.5LSB |
| Width | 6.61mm |
| Length | 31.19mm |
| Dimensions | 31.19 x 6.61 x 3.3mm |
| Maximum Operating Temperature | +85 °C |
| Height | 3.3mm |
