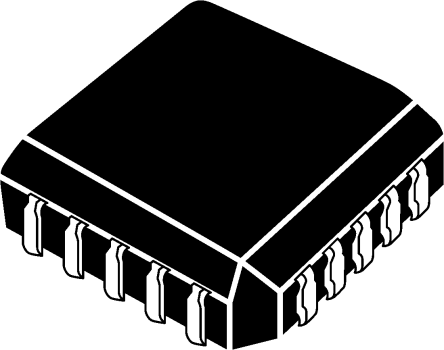

Analog Devices AD7528JPZ, 2-Channel 8 bit Parallel DAC, 5.6Msps, 20-Pin PLCC [AD7528JPZ]; 709-6452
0₫
Mã kho: 7096452
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | PLCC |
| Power Supply Type | Single |
| Conversion Rate | 5.6Msps |
| Typical Single Supply Voltage | 9 V, 12 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 20 |
| Maximum Settling Time | 0.4µs |
| Full Scale Error | ±6LSB |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±1LSB |
| Length | 9.04mm |
| Dimensions | 9.04 x 9.04 x 3.68mm |
| Maximum Operating Temperature | +85 °C |
| Height | 3.68mm |
| Width | 9.04mm |
