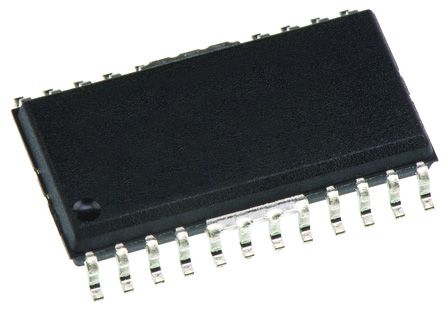

Analog Devices AD7397ARZ, 2-Channel 10 bit Parallel DAC, 24-Pin SOIC [AD7397ARZ]; 145-6855
0₫
Mã kho: 1456855
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 10 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3 V |
| Voltage Reference | External |
| Architecture | R-2R |
| Pin Count | 24 |
| Maximum Settling Time | 70µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±20mV |
| Length | 15.6mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 7.6mm |
| Height | 2.35mm |
| Integral Nonlinearity Error | ±2LSB |
| Dimensions | 15.6 x 7.6 x 2.35mm |
