Analog Devices AD7304BRZ, 4-Channel 8 bit Serial DAC, 1Msps, 16-Pin SOIC W [AD7304BRZ]; 158-0495
0₫
Mã kho: 1580495
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 8 bit |
Number of DAC Channels | 4 |
Digital Interface Type | Serial (SPI) |
Mounting Type | Surface Mount |

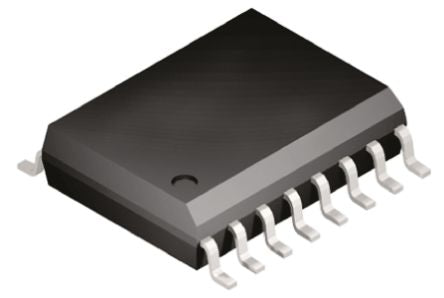

Package Type | SOIC W |
Power Supply Type | Dual, Single |
Conversion Rate | 1Msps |
Typical Single Supply Voltage | 3 V, 5 V |
Voltage Reference | External |
Architecture | R-2R, Resistor String |
Pin Count | 16 |
Maximum Settling Time | 2µs |
Output Polarity | Bipolar, Unipolar |
Full Scale Error | ±4LSB |
Integral Nonlinearity Error | ±1LSB |
Length | 10.5mm |
Maximum Operating Temperature | +85 °C |
Dimensions | 10.5 x 7.6 x 2.35mm |
Typical Dual Supply Voltage | ±5V |
Minimum Operating Temperature | -40 °C |
Height | 2.35mm |
Width | 7.6mm |
