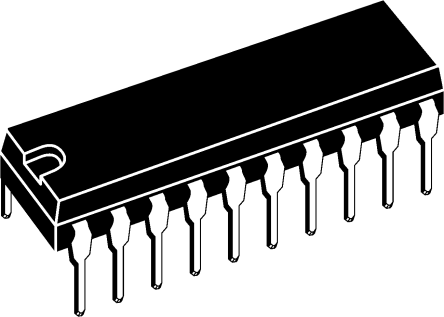

Analog Devices AD7302BNZ, 2-Channel 8 bit Parallel DAC, 833ksps, 20-Pin PDIP [AD7302BNZ]; 111-2220
0₫
Mã kho: 1112220
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Parallel |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Single |
| Conversion Rate | 833ksps |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Voltage Reference | External, Internal |
| Pin Count | 20 |
| Maximum Settling Time | 2µs |
| Output Polarity | Unipolar |
| Full Scale Error | -0.75LSB |
| Maximum Operating Temperature | +105 °C |
| Length | 26.16mm |
| Height | 3.3mm |
| Width | 6.35mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 26.16 x 6.35 x 3.3mm |
| Integral Nonlinearity Error | ±1LSB |
