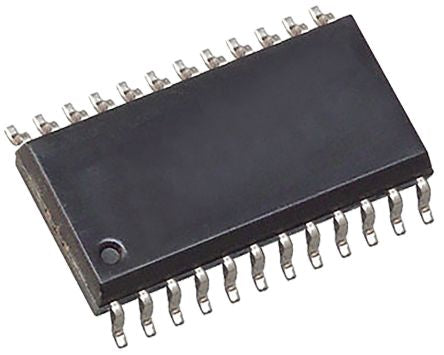

Analog Devices AD7245AARZ, 12 bit Parallel DAC, 143ksps, 24-Pin SOIC W [AD7245AARZ]; 158-5258
0₫
Mã kho: 1585258
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | SOIC W |
| Power Supply Type | Dual, Single |
| Conversion Rate | 143ksps |
| Typical Single Supply Voltage | 12 V, 15 V |
| Voltage Reference | Internal |
| Architecture | R-2R, Resistor String |
| Pin Count | 24 |
| Maximum Settling Time | 7µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±0.2%FSR |
| Typical Dual Supply Voltage | ±12 V, ±15 V |
| Height | 2.35mm |
| Width | 7.6mm |
| Maximum Operating Temperature | +85 °C |
| Length | 15.6mm |
| Dimensions | 15.6 x 7.6 x 2.35mm |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±1LSB |
