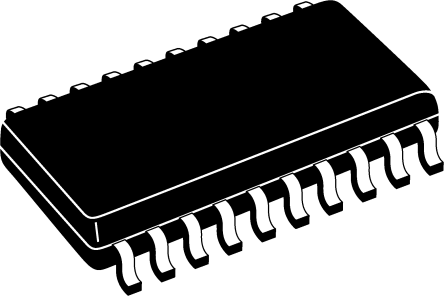

Analog Devices AD7226KRZ, 4-Channel 8 bit Parallel DAC, 143ksps, 20-Pin SOIC W [AD7226KRZ]; 412-484
0₫
Mã kho: 412484
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 8 bit |
Number of DAC Channels | 4 |
Digital Interface Type | Parallel |
Mounting Type | Surface Mount |
Package Type | SOIC W |
Power Supply Type | Dual, Single |
Conversion Rate | 143ksps |
Typical Single Supply Voltage | 15 V |
Voltage Reference | External |
Architecture | R-2R, Resistor String |
Pin Count | 20 |
Maximum Settling Time | 20µs |
Output Polarity | Unipolar |
Full Scale Error | ±1.5LSB |
Typical Dual Supply Voltage | -5 V, 12 V, 15 V |
Integral Nonlinearity Error | ±1LSB |
Width | 7.6mm |
Length | 13mm |
Minimum Operating Temperature | -40 °C |
Dimensions | 13 x 7.6 x 2.35mm |
Height | 2.35mm |
Maximum Operating Temperature | +85 °C |
