![Analog Devices AD7224LNZ 7589752](http://nguyenxuong.com/cdn/shop/products/R0403636-06_20101db3-5e90-47ac-8650-e923af2c2348_444x315.jpg?v=1594164929)

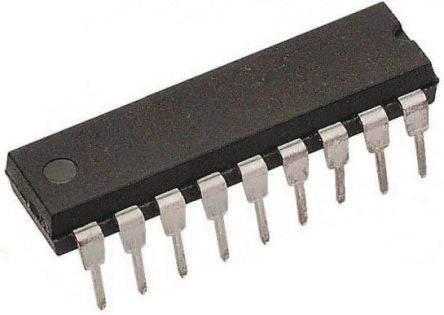

Analog Devices AD7224LNZ, 8 bit Parallel DAC, 143ksps, 18-Pin PDIP [AD7224LNZ]; 758-9752
0₫
Mã kho: 7589752
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 8 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Parallel |
Mounting Type | Through Hole |
Package Type | PDIP |
Power Supply Type | Dual, Single |
Conversion Rate | 143ksps |
Typical Single Supply Voltage | 14.25 → 15.75 V |
Voltage Reference | External |
Architecture | R-2R, Resistor String |
Pin Count | 18 |
Maximum Settling Time | 7µs |
Output Polarity | Bipolar, Unipolar |
Full Scale Error | ±3/2LSB |
Integral Nonlinearity Error | ±1LSB |
Width | 7.6mm |
Length | 13mm |
Maximum Operating Temperature | +85 °C |
Dimensions | 13 x 7.6 x 2.65mm |
Minimum Operating Temperature | -40 °C |
Typical Dual Supply Voltage | ±2 → ±12.5V |
Height | 2.65mm |
