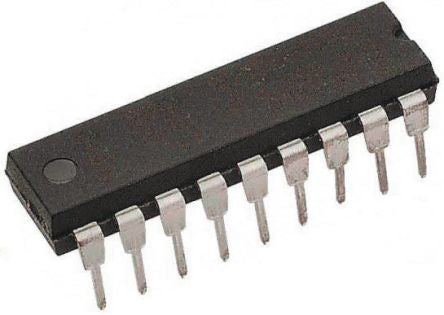

Analog Devices AD7224KNZ, 8 bit Parallel DAC, 143ksps, 18-Pin PDIP [AD7224KNZ]; 522-9379
0₫
Mã kho: 5229379
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Dual, Single |
| Conversion Rate | 143ksps |
| Typical Single Supply Voltage | 15 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 18 |
| Maximum Settling Time | 20µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±1.5LSB |
| Length | 22.86mm |
| Dimensions | 22.86 x 6.35 x 3.3mm |
| Width | 6.35mm |
| Integral Nonlinearity Error | ±1LSB |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Height | 3.3mm |
| Typical Dual Supply Voltage | -5 V, 12 V, 15 V |
