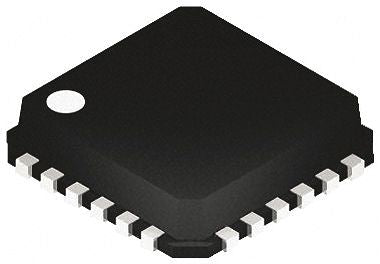

Analog Devices AD5780ACPZ, 18 bit Serial DAC, 24-Pin LFCSP VQ [AD5780ACPZ]; 160-1684
0₫
Mã kho: 1601684
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 18 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Surface Mount |
| Package Type | LFCSP VQ |
| Power Supply Type | Dual |
| Voltage Reference | External, Internal |
| Architecture | R-2R, Resistor String |
| Pin Count | 24 |
| Maximum Settling Time | 2.5µs |
| Output Polarity | Bipolar |
| Full Scale Error | ±10LSB |
| Dimensions | 4 x 4 x 0.95mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Typical Dual Supply Voltage | ±16.5V |
| Length | 4mm |
| Width | 4mm |
| Height | 0.95mm |
| Integral Nonlinearity Error | ±2LSB |
