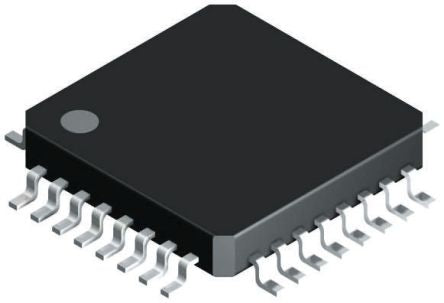

Analog Devices AD5764RBSUZ, 4-Channel 16 bit Serial DAC, 32-Pin TQFP [AD5764RBSUZ]; 697-6940
0₫
Mã kho: 6976940
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Power Supply Type | Dual |
| Voltage Reference | External, Internal |
| Architecture | R-2R, Resistor String |
| Pin Count | 32 |
| Maximum Settling Time | 10µs |
| Output Polarity | Bipolar |
| Full Scale Error | ±0.02%FSR |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±2LSB |
| Length | 7mm |
| Dimensions | 7 x 7 x 1mm |
| Typical Dual Supply Voltage | ±15V |
| Width | 7mm |
| Height | 1mm |
| Maximum Operating Temperature | +85 °C |
