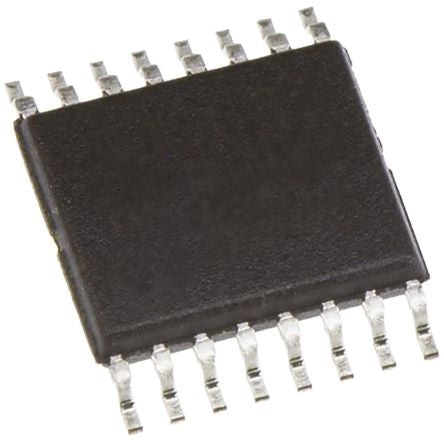

Analog Devices AD5761RBRUZ, 16 bit Parallel DAC, 16-Pin TSSOP [AD5761RBRUZ]; 160-2712
0₫
Mã kho: 1602712
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel & Serial (LVDS/SPI) |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 1.7 → 5.5 V |
| Voltage Reference | External |
| Architecture | R-2R |
| Pin Count | 16 |
| Maximum Settling Time | 12.5µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±13mV |
| Height | 1.05mm |
| Maximum Operating Temperature | +125 °C |
| Length | 5.1mm |
| Dimensions | 5.1 x 4.5 x 1.05mm |
| Width | 4.5mm |
| Integral Nonlinearity Error | ±2LSB |
| Minimum Operating Temperature | -40 °C |
