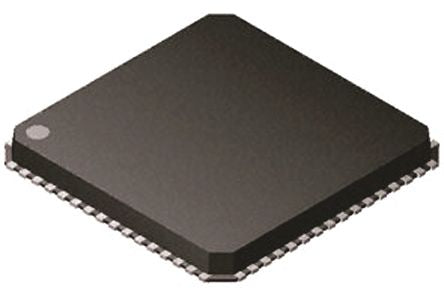

Analog Devices AD5757ACPZ, 16 bit Serial DAC, 64-Pin LFCSP VQ [AD5757ACPZ]; 160-1686
0₫
Mã kho: 1601686
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | LFCSP VQ |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Voltage Reference | External, Internal |
| Architecture | R-2R |
| Pin Count | 64 |
| Maximum Settling Time | 15µs |
| Full Scale Error | ±0.05%FSR |
| Minimum Operating Temperature | -40 °C |
| Width | 9.1mm |
| Maximum Operating Temperature | +105 °C |
| Height | 0.8mm |
| Integral Nonlinearity Error | ±1LSB |
| Length | 9.1mm |
| Dimensions | 9.1 x 9.1 x 0.8mm |
