Data Converters > General Purpose DACs

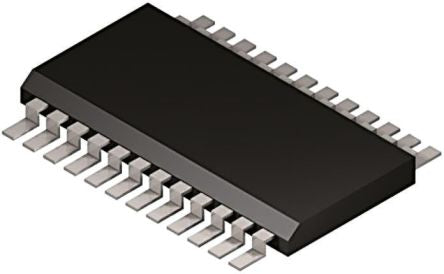

Analog Devices AD5754BREZ, 4-Channel 16 bit Serial DAC, 100ksps, 24-Pin TSSOP [AD5754BREZ]; 159-7620

0₫
(Giá chưa VAT).
Mã kho: 1597620

Mã nhà sản xuất: AD5754BREZ

Đơn vị tính: In a Tube of 62

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Resolution 16 bit
Number of DAC Channels 4
Digital Interface Type Serial (SPI)
Mounting Type Surface Mount
Package Type TSSOP
Power Supply Type Dual, Single
Conversion Rate 100ksps
Typical Single Supply Voltage 2.7 → 5.5 V
Voltage Reference External
Architecture Resistor String
Pin Count 24
Maximum Settling Time 12µs
Output Polarity Bipolar, Unipolar
Maximum Operating Temperature +85 °C
Height 1.05mm
Dimensions 7.9 x 4.5 x 1.05mm
Length 7.9mm
Width 4.5mm
Integral Nonlinearity Error ±16LSB
Minimum Operating Temperature -40 °C
Typical Dual Supply Voltage ±4.5 → ±16.5V
