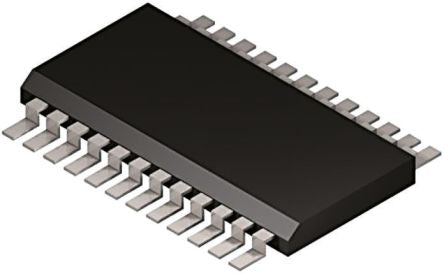

Analog Devices AD5734AREZ, 4-Channel 14 bit Serial DAC, 100ksps, 24-Pin TSSOP [AD5734AREZ]; 159-7759
0₫
Mã kho: 1597759
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 14 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Dual, Single |
| Conversion Rate | 100ksps |
| Typical Single Supply Voltage | 5 V, 9 V, 12 V, 15 V |
| Voltage Reference | External |
| Architecture | Resistor String |
| Pin Count | 24 |
| Maximum Settling Time | 12µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | 0.08%FSR |
| Dimensions | 7.8 x 4.4 x 1mm |
| Length | 7.8mm |
| Height | 1mm |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±5 V, ±9 V |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±4LSB |
| Width | 4.4mm |
| Maximum Operating Temperature | +85 °C |
