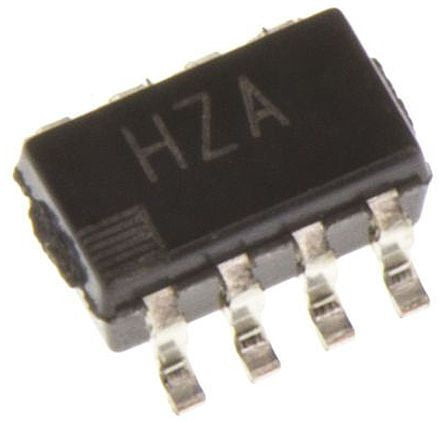

Analog Devices AD5660BRJZ-2500RL7, 16 bit Serial DAC, 8-Pin SOT-23 [AD5660BRJZ-2500RL7]; 912-8201
0₫
Mã kho: 9128201
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 16 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Serial (SPI/QSPI/Microwire) |
Mounting Type | Surface Mount |
Package Type | SOT-23 |
Power Supply Type | Single |
Typical Single Supply Voltage | 3 V, 5 V |
Voltage Reference | External, Internal |
Architecture | Resistor String |
Pin Count | 8 |
Maximum Settling Time | 10µs |
Output Polarity | Bipolar |
Full Scale Error | ±1%FSR |
Minimum Operating Temperature | -40 °C |
Integral Nonlinearity Error | ±1LSB |
Width | 1.7mm |
Length | 3mm |
Dimensions | 3 x 1.7 x 1.3mm |
Height | 1.3mm |
Maximum Operating Temperature | +105 °C |
