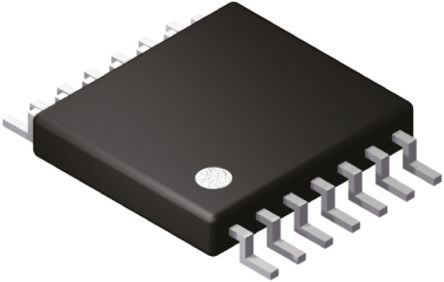

Analog Devices AD5645RBRUZ, 4-Channel 14 bit Serial DAC, 14-Pin TSSOP [AD5645RBRUZ]; 709-5945
0₫
Mã kho: 7095945
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 14 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Serial (I2C) |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Voltage Reference | External, Internal |
| Architecture | Resistor String |
| Pin Count | 14 |
| Maximum Settling Time | 5µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±0.5%FSR |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±4LSB |
| Width | 4.4mm |
| Dimensions | 5 x 4.4 x 1mm |
| Height | 1mm |
| Length | 5mm |
| Maximum Operating Temperature | +105 °C |
