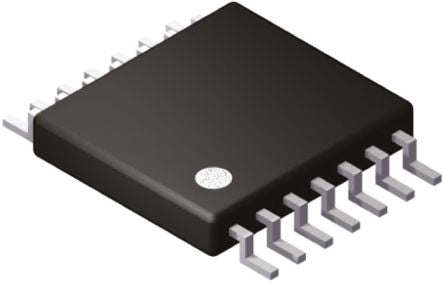

Analog Devices AD5645RBRUZ, 4-Channel 14 bit Serial DAC, 14-Pin TSSOP [AD5645RBRUZ]; 158-5301
0₫
Mã kho: 1585301
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 14 bit |
Number of DAC Channels | 4 |
Digital Interface Type | Serial (I2C) |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Power Supply Type | Single |
Typical Single Supply Voltage | 3.3 V, 5 V |
Voltage Reference | External, Internal |
Architecture | Resistor String |
Pin Count | 14 |
Maximum Settling Time | 5µs |
Output Polarity | Unipolar |
Full Scale Error | ±0.5%FSR |
Maximum Operating Temperature | +105 °C |
Height | 1mm |
Length | 5mm |
Width | 4.4mm |
Dimensions | 5 x 4.4 x 1mm |
Integral Nonlinearity Error | ±4LSB |
Minimum Operating Temperature | -40 °C |
