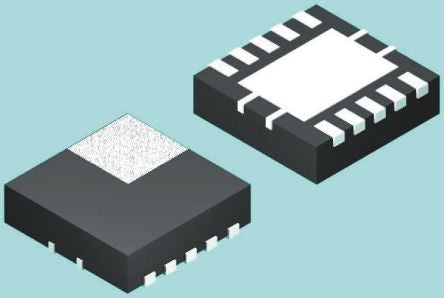

Analog Devices AD5624RBCPZ-5R2, 4-Channel 12 bit Serial DAC, 10-Pin LFCSP WD [AD5624RBCPZ-5R2]; 160-9857
0₫
Mã kho: 1609857
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 4 |
Digital Interface Type | Serial |
Mounting Type | Surface Mount |
Package Type | LFCSP WD |
Power Supply Type | Single |
Typical Single Supply Voltage | 2.7 → 5.5 V |
Voltage Reference | Internal |
Architecture | Resistor String |
Pin Count | 10 |
Maximum Settling Time | 4.5µs |
Output Polarity | Bipolar |
Full Scale Error | ±1%FSR |
Dimensions | 3.1 x 3.1 x 0.8mm |
Length | 3.1mm |
Width | 3.1mm |
Height | 0.8mm |
Integral Nonlinearity Error | ±1LSB |
Maximum Operating Temperature | +105 °C |
Minimum Operating Temperature | -40 °C |
