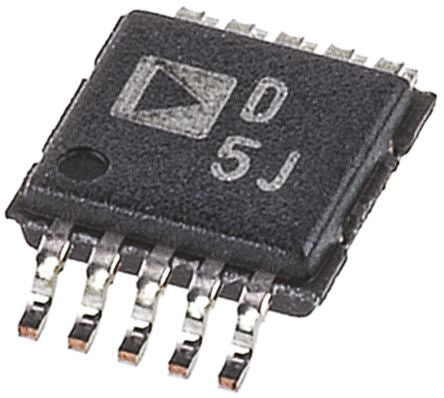

Analog Devices AD5624BRMZ, 4-Channel 12 bit Serial DAC, 287ksps, 10-Pin MSOP [AD5624BRMZ]; 709-5935
0₫
Mã kho: 7095935
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Power Supply Type | Single |
| Conversion Rate | 287ksps |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Voltage Reference | External |
| Architecture | Resistor String |
| Pin Count | 10 |
| Maximum Settling Time | 4.5µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±1%FSR |
| Length | 3mm |
| Dimensions | 3 x 3 x 0.85mm |
| Maximum Operating Temperature | +105 °C |
| Height | 0.85mm |
| Width | 3mm |
| Integral Nonlinearity Error | ±1LSB |
| Minimum Operating Temperature | -40 °C |
