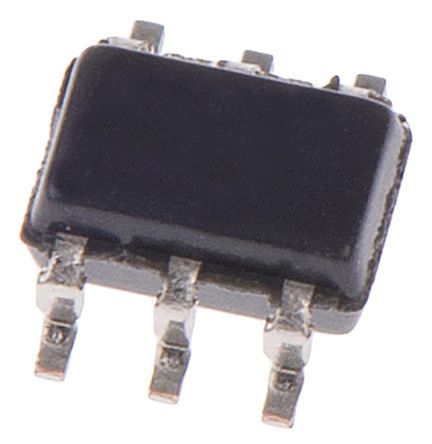

Analog Devices AD5601BKSZ-500RL7, 8 bit Serial DAC, 6-Pin SC-70 [AD5601BKSZ-500RL7]; 796-8893
0₫
Mã kho: 7968893
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Surface Mount |
| Package Type | SC-70 |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Voltage Reference | Internal |
| Architecture | Resistor String |
| Pin Count | 6 |
| Maximum Settling Time | 10µs |
| Output Polarity | Bipolar |
| Full Scale Error | ±0.5mV |
| Width | 1.35mm |
| Length | 2.2mm |
| Height | 1mm |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 2.2 x 1.35 x 1mm |
| Integral Nonlinearity Error | ±0.5LSB |
| Minimum Operating Temperature | -40 °C |
