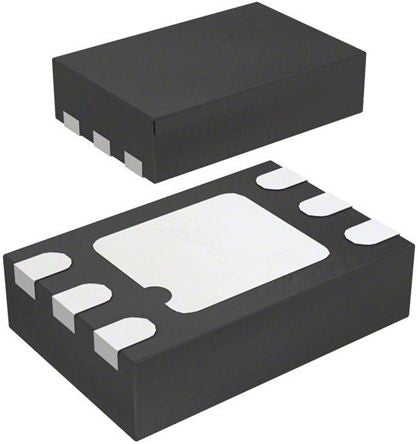

Analog Devices AD5601BCPZ-RL7, 8 bit Serial DAC, 6-Pin LFCSP WD [AD5601BCPZ-RL7]; 877-8708
0₫
Mã kho: 8778708
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 8 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Serial (SPI) |
Mounting Type | Surface Mount |
Package Type | LFCSP WD |
Power Supply Type | Single |
Typical Single Supply Voltage | 2.7 → 5.5 V |
Voltage Reference | Internal |
Architecture | Resistor String |
Pin Count | 6 |
Maximum Settling Time | 10µs |
Output Polarity | Bipolar |
Full Scale Error | +0.5mV |
Integral Nonlinearity Error | ±0.5LSB |
Maximum Operating Temperature | +125 °C |
Dimensions | 2.1 x 3.1 x 0.75mm |
Minimum Operating Temperature | -40 °C |
Height | 0.75mm |
Length | 2.1mm |
Width | 3.1mm |
