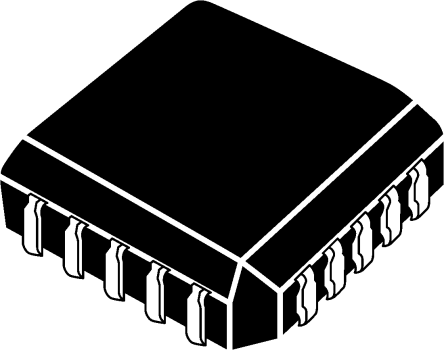

Analog Devices AD557JPZ, 8 bit Parallel DAC, 1.25Msps, 20-Pin PLCC [AD557JPZ]; 523-7049
0₫
Mã kho: 5237049
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | PLCC |
| Power Supply Type | Single |
| Conversion Rate | 1.25Msps |
| Typical Single Supply Voltage | 5 V |
| Voltage Reference | Internal |
| Architecture | R-2R, Resistor String |
| Pin Count | 20 |
| Maximum Settling Time | 1.5µs |
| Output Polarity | Unipolar |
| Length | 9.04mm |
| Integral Nonlinearity Error | 1LSB |
| Width | 9.04mm |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Height | 3.68mm |
| Dimensions | 9.04 x 9.04 x 3.68mm |
