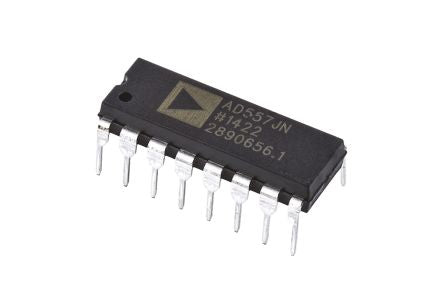

Analog Devices AD557JNZ, 8 bit Parallel DAC, 1.25Msps, 16-Pin PDIP [AD557JNZ]; 522-8152
0₫
Mã kho: 5228152
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 8 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Parallel |
Mounting Type | Through Hole |
Package Type | PDIP |
Power Supply Type | Single |
Conversion Rate | 1.25Msps |
Typical Single Supply Voltage | 5 V |
Voltage Reference | Internal |
Architecture | R-2R, Resistor String |
Pin Count | 16 |
Maximum Settling Time | 1.5µs |
Output Polarity | Unipolar |
Dimensions | 22.1 x 6.35 x 4.57mm |
Height | 4.57mm |
Integral Nonlinearity Error | 1LSB |
Minimum Operating Temperature | 0 °C |
Length | 22.1mm |
Maximum Operating Temperature | +70 °C |
Width | 6.35mm |
