![Analog Devices AD5556CRUZ 5385261](http://nguyenxuong.com/cdn/shop/products/R0218282-01_716a0d97-b05e-481a-93fd-e6284b570d7e_300x190.jpg?v=1594273928)

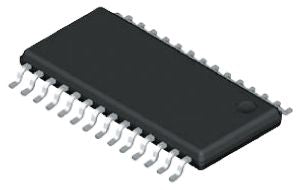

Analog Devices AD5556CRUZ, 14 bit Parallel DAC, 2Msps, 28-Pin TSSOP [AD5556CRUZ]; 538-5261
0₫
Mã kho: 5385261
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 14 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Parallel |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Power Supply Type | Single |
Conversion Rate | 2Msps |
Typical Single Supply Voltage | 3.3 V, 5 V |
Voltage Reference | External |
Architecture | Current Steering, R-2R |
Pin Count | 28 |
Maximum Settling Time | 0.5µs |
Output Polarity | Unipolar |
Full Scale Error | ±4mV |
Minimum Operating Temperature | -40 °C |
Width | 4.4mm |
Height | 1.05mm |
Dimensions | 9.7 x 4.4 x 1.05mm |
Length | 9.7mm |
Maximum Operating Temperature | +125 °C |
Integral Nonlinearity Error | ±1LSB |
