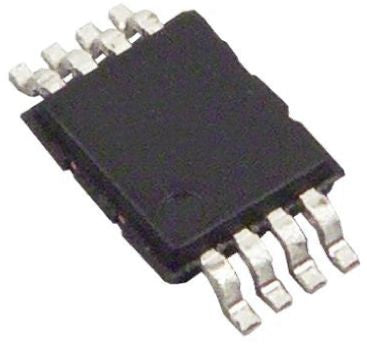

Analog Devices AD5553CRMZ, 14 bit Serial DAC, 2Msps, 8-Pin uSOIC [AD5553CRMZ]; 496-9701
0₫
Mã kho: 4969701
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 14 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Serial (SPI) |
Mounting Type | Surface Mount |
Package Type | USOIC |
Power Supply Type | Single |
Conversion Rate | 2Msps |
Typical Single Supply Voltage | 5 V |
Voltage Reference | External |
Architecture | R-2R, Resistor String |
Pin Count | 8 |
Maximum Settling Time | 0.5µs |
Output Polarity | Unipolar |
Full Scale Error | ±4mV |
Integral Nonlinearity Error | ±1LSB |
Maximum Operating Temperature | +85 °C |
Width | 3mm |
Length | 3mm |
Dimensions | 3 x 3 x 0.85mm |
Height | 0.85mm |
Minimum Operating Temperature | -40 °C |
