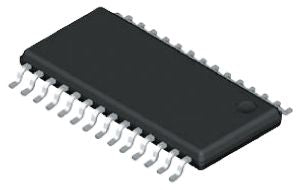

Analog Devices AD5546CRUZ, 2-Channel 16 bit Parallel DAC, 2Msps, 28-Pin TSSOP [AD5546CRUZ]; 759-2247
0₫
Mã kho: 7592247
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 16 bit |
Number of DAC Channels | 2 |
Digital Interface Type | Parallel |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Power Supply Type | Single |
Conversion Rate | 2Msps |
Typical Single Supply Voltage | 2.7 → 5.5 V |
Voltage Reference | External |
Architecture | Current Steering, R-2R |
Pin Count | 28 |
Maximum Settling Time | 0.5µs |
Output Polarity | Unipolar |
Length | 9.8mm |
Dimensions | 9.8 x 4.5 x 1.2mm |
Width | 4.5mm |
Integral Nonlinearity Error | ±1LSB |
Minimum Operating Temperature | -40 °C |
Height | 1.2mm |
Maximum Operating Temperature | +125 °C |
