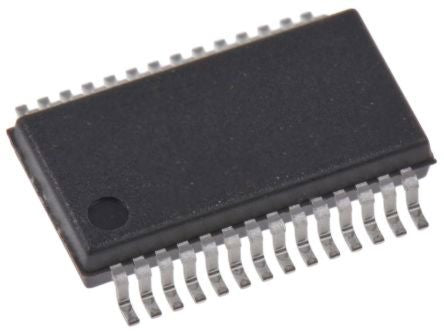

Analog Devices AD5544BRSZ, 4-Channel 16 bit DAC, 28-Pin SSOP [AD5544BRSZ]; 183-1703
0₫
Mã kho: 1831703
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 4 |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Voltage Reference | External |
| Pin Count | 28 |
| Maximum Settling Time | 0.9µs |
| Output Polarity | Bipolar |
| Full Scale Error | ±10mV |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 10.5 x 5.6 x 1.85mm |
| Height | 1.85mm |
| Length | 10.5mm |
| Width | 5.6mm |
| Minimum Operating Temperature | -40 °C |
