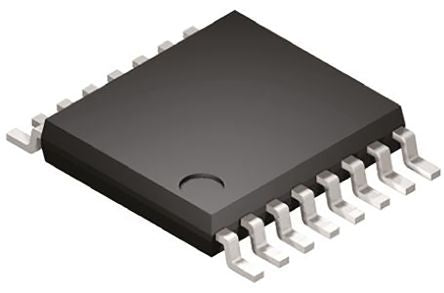

Analog Devices AD5530BRUZ, 12 bit Serial DAC, 50ksps, 16-Pin TSSOP [AD5530BRUZ]; 158-0234
0₫
Mã kho: 1580234
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Serial (SPI/QSPI/Microwire) |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Power Supply Type | Dual |
Conversion Rate | 50ksps |
Voltage Reference | External |
Architecture | R-2R, Resistor String |
Pin Count | 16 |
Maximum Settling Time | 20µs |
Output Polarity | Bipolar |
Full Scale Error | ±2LSB |
Length | 5mm |
Dimensions | 5 x 4.4 x 1.05mm |
Minimum Operating Temperature | -40 °C |
Typical Dual Supply Voltage | ±12 V, ±15 V |
Width | 4.4mm |
Integral Nonlinearity Error | ±1LSB |
Maximum Operating Temperature | +85 °C |
Height | 1.05mm |
