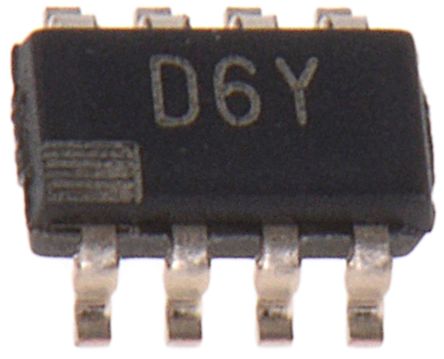

Analog Devices AD5450YUJZ-REEL7, 8 bit Serial DAC, 2.7Msps, 8-Pin TSOT [AD5450YUJZ-REEL7]; 158-0461
0₫
Mã kho: 1580461
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | TSOT |
| Power Supply Type | Single |
| Conversion Rate | 2.7Msps |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 8 |
| Maximum Settling Time | 0.11µs |
| Full Scale Error | ±0.25LSB |
| Width | 1.6mm |
| Dimensions | 2.9 x 1.6 x 0.87mm |
| Maximum Operating Temperature | +125 °C |
| Height | 0.87mm |
| Integral Nonlinearity Error | ±0.25LSB |
| Length | 2.9mm |
| Minimum Operating Temperature | -40 °C |
