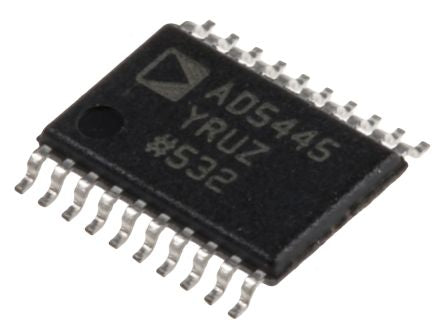

Analog Devices AD5445YRUZ, 12 bit Parallel DAC, 20.4Msps, 20-Pin TSSOP [AD5445YRUZ]; 111-2229
0₫
Mã kho: 1112229
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Conversion Rate | 20.4Msps |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 20 |
| Maximum Settling Time | 0.12µs |
| Full Scale Error | ±10mV |
| Minimum Operating Temperature | -40 °C |
| Height | 1.05mm |
| Maximum Operating Temperature | +125 °C |
| Integral Nonlinearity Error | ±1LSB |
| Dimensions | 6.5 x 4.4 x 1.05mm |
| Width | 4.4mm |
| Length | 6.5mm |
