Data Converters > General Purpose DACs

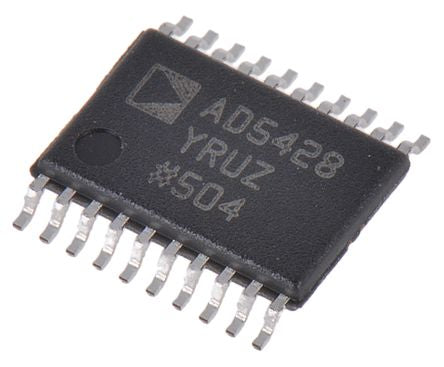

DAC, Dual 8bit, AD5428YRUZ [AD5428YRUZ]; 160-9973

0₫
(Giá chưa VAT).
Mã kho: 1609973

Mã nhà sản xuất: AD5428YRUZ

Đơn vị tính: In a Tube of 75

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Resolution 8 bit
Number of DAC Channels 2
Digital Interface Type Parallel
Mounting Type Surface Mount
Package Type TSSOP
Power Supply Type Single
Conversion Rate 21.3Msps
Typical Single Supply Voltage 3.3 V, 5 V
Voltage Reference External
Architecture R-2R, Resistor String
Pin Count 20
Maximum Settling Time 0.12µs
Full Scale Error ±25mV
Integral Nonlinearity Error ±0.25LSB
Dimensions 6.5 x 4.4 x 1.05mm
Height 1.05mm
Width 4.4mm
Minimum Operating Temperature -40 °C
Length 6.5mm
Maximum Operating Temperature +125 °C
