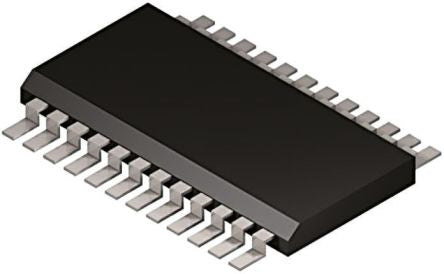

Analog Devices AD5415YRUZ, 2-Channel 12 bit Serial DAC, 2.47Msps, 24-Pin TSSOP [AD5415YRUZ]; 709-5884
0₫
Mã kho: 7095884
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Conversion Rate | 2.47Msps |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 24 |
| Maximum Settling Time | 0.12µs |
| Full Scale Error | ±25mV |
| Width | 4.4mm |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±1LSB |
| Height | 1.05mm |
| Dimensions | 7.8 x 4.4 x 1.05mm |
| Length | 7.8mm |
| Maximum Operating Temperature | +125 °C |
