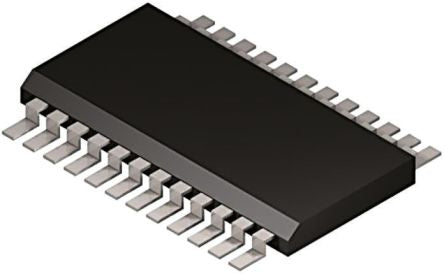

Analog Devices AD5415YRUZ, 2-Channel 12 bit Serial DAC, 2.47Msps, 24-Pin TSSOP [AD5415YRUZ]; 158-5292
0₫
Mã kho: 1585292
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 2 |
Digital Interface Type | Serial (SPI/QSPI/Microwire) |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Power Supply Type | Single |
Conversion Rate | 2.47Msps |
Typical Single Supply Voltage | 3.3 V, 5 V |
Voltage Reference | External |
Architecture | R-2R, Resistor String |
Pin Count | 24 |
Maximum Settling Time | 0.12µs |
Full Scale Error | ±25mV |
Dimensions | 7.8 x 4.4 x 1.05mm |
Maximum Operating Temperature | +125 °C |
Height | 1.05mm |
Length | 7.8mm |
Width | 4.4mm |
Minimum Operating Temperature | -40 °C |
Integral Nonlinearity Error | ±1LSB |
