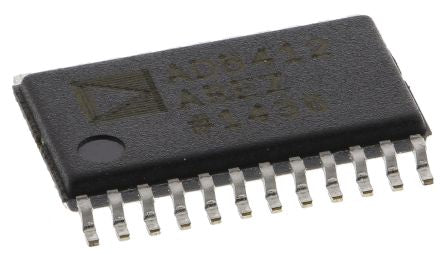

Analog Devices AD5412AREZ, 12 bit Serial DAC, 40ksps, 24-Pin TSSOP [AD5412AREZ]; 912-7707
0₫
Mã kho: 9127707
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Serial (SPI/QSPI/Microwire) |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Power Supply Type | Dual, Single |
Conversion Rate | 40ksps |
Typical Single Supply Voltage | 12 V, 15 V, 18 V, 24 V, 28 V |
Voltage Reference | External, Internal |
Architecture | R-2R, Resistor String |
Pin Count | 24 |
Maximum Settling Time | 40µs |
Output Polarity | Bipolar, Unipolar |
Full Scale Error | ±0.2%FSR |
Minimum Operating Temperature | -40 °C |
Typical Dual Supply Voltage | ±12 V, ±15 V, ±18 V, ±24 V, ±28 V |
Width | 4.4mm |
Integral Nonlinearity Error | ±0.032%FSR |
Length | 7.8mm |
Dimensions | 7.8 x 4.4 x 1mm |
Maximum Operating Temperature | +85 °C |
Height | 1mm |
